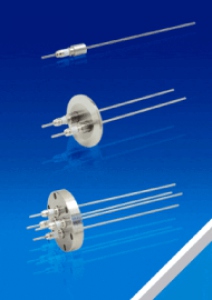

Power Plug 12kV - 15kV / to 185 Amps / 1 to 4 Pins
Specifications
Housing:
304 Stainless steel
Pin:
See table
Insulation:
Alumina ceramic
Flange:
304 Stainless steel
Magnetic materials:
Yes
Voltage Rating:
15 kV DC
Current Rating:
See table
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
750 PSIG (52 Bar), ISO KF 0 PSIG
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 16705-01-CF | FEEDTHROUGH | 2 | NW35CF | 12kV | 185 | Copper | Yes |
0 in stock
$242.88
|
Enquire | |
| 16705-06-CF | FEEDTHROUGH | 2 | NW35CF | 12kV | 56 | Nickel | Yes |
0 in stock
$252.12
|
Enquire | |
| 21280-06-CF | FEEDTHROUGH | 3 | NW63CF | 15kV | 56 | Nickel | Yes |
0 in stock
$451.44
|
Enquire | |
| 21309-02-CF | FEEDTHROUGH | 1 | NW16CF | 15kV | 56 | Nickel | Yes |
0 in stock
$170.28
|
Enquire | |
| 2779-01-W | FEEDTHROUGH | 1 | Weld | 12kV | 185 | Copper | Yes |
0 in stock
$163.68
|
Enquire | |
| 2779-07-W | FEEDTHROUGH | 1 | Weld | 12kV | 56 | Nickel | Yes |
0 in stock
$100.32
|
Enquire | |
| 21414-07-W | FEEDTHROUGH | 1 | Weld | 15kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21414-01-W | FEEDTHROUGH | 1 | Weld | 15kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21308-02-KF | FEEDTHROUGH | 1 | NW16KF | 15kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21308-01-KF | FEEDTHROUGH | 1 | NW16KF | 15kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21278-02-KF | FEEDTHROUGH | 1 | NW40KF | 15kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21278-01-KF | FEEDTHROUGH | 1 | NW40KF | 15kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21278-04-KF | FEEDTHROUGH | 2 | NW40KF | 15kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21278-03-KF | FEEDTHROUGH | 2 | NW40KF | 15kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21278-06-KF | FEEDTHROUGH | 3 | NW50KF | 15kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21278-05-KF | FEEDTHROUGH | 3 | NW50KF | 15kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21278-08-KF | FEEDTHROUGH | 4 | NW50KF | 15kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21278-07-KF | FEEDTHROUGH | 4 | NW50KF | 15kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21309-01-CF | FEEDTHROUGH | 1 | NW16CF | 15kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21280-02-CF | FEEDTHROUGH | 1 | NW35CF | 15kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21280-01-CF | FEEDTHROUGH | 1 | NW35CF | 15kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21280-04-CF | FEEDTHROUGH | 2 | NW35CF | 15kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21280-03-CF | FEEDTHROUGH | 2 | NW35CF | 15kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21280-05-CF | FEEDTHROUGH | 3 | NW63CF | 15kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21280-08-CF | FEEDTHROUGH | 4 | NW63CF | 15kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21280-07-CF | FEEDTHROUGH | 4 | NW63CF | 15kV | 185 | Copper | Yes |
in stock
|
Enquire |
