Ceramtec

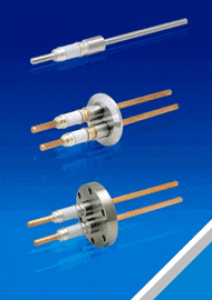

Power Plug 25kV / to 185 Amps / 1 to 4 Pins
Specifications
Housing:
304 Stainless steel
Pin:
See table
Insulation:
Alumina ceramic
Flange:
304 Stainless steel
Magnetic materials:
Yes
Voltage Rating:
25 kV DC
Current Rating:
See table
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
50 PSIG (52 Bar), ISO KF 0 PSIG
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 20955-01-W | FEEDTHROUGH | 1 | Weld | 25kV | 185 | Copper | Yes |
0 in stock
$126.72
|
Enquire | |
| 20955-02-W | FEEDTHROUGH | 1 | Weld | 25kV | 56 | Nickel | Yes |
0 in stock
$147.84
|
Enquire | |
| 21133-01-KF | FEEDTHROUGH | 1 | NW16KF | 25kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21133-02-KF | FEEDTHROUGH | 1 | NW16KF | 25kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21149-01-KF | FEEDTHROUGH | 2 | NW40KF | 25kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21149-02-KF | FEEDTHROUGH | 2 | NW40KF | 25kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21150-01-KF | FEEDTHROUGH | 3 | NW50KF | 25kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21150-02-KF | FEEDTHROUGH | 3 | NW50KF | 25kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21151-01-KF | FEEDTHROUGH | 4 | NW50KF | 25kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21151-02-KF | FEEDTHROUGH | 4 | NW50KF | 25kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21130-01-KF | FEEDTHROUGH | 1 | NW16CF | 25kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21130-02-KF | FEEDTHROUGH | 1 | NW16CF | 25kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21144-01-KF | FEEDTHROUGH | 1 | NW35CF | 25kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21144-02-KF | FEEDTHROUGH | 1 | NW35CF | 25kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21145-01-KF | FEEDTHROUGH | 2 | NW35CF | 25kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21145-02-KF | FEEDTHROUGH | 2 | NW35CF | 25kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21146-01-KF | FEEDTHROUGH | 3 | NW63CF | 25kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21146-02-KF | FEEDTHROUGH | 3 | NW63CF | 25kV | 56 | Nickel | Yes |
in stock
|
Enquire | |
| 21147-01-KF | FEEDTHROUGH | 4 | NW63CF | 25kV | 185 | Copper | Yes |
in stock
|
Enquire | |
| 21147-02-KF | FEEDTHROUGH | 4 | NW63CF | 25kV | 56 | Nickel | Yes |
in stock
|
Enquire |
