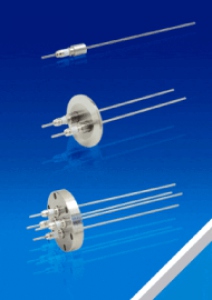

Power Plug 5kV - 10kV / to 100 Amps / 1 to 4 Pins
Specifications
Housing:
304 Stainless steel
Pin:
See table
Insulation:
Alumina ceramic
Flange:
304 Stainless steel
Magnetic materials:
Yes
Voltage Rating:
10 kV DC
Current Rating:
See table
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
1000 PSIG (69 Bar), ISO KF 0 PSIG
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 21032-01-W | FEEDTHROUGH | 1 | Weld | 10kV | 100 | Copper | Yes |
0 in stock
$134.64
|
Enquire | |
| 6514-01-W | FEEDTHROUGH | 1 | Weld | 5kV | 100 | Copper | Yes |
0 in stock
$93.72
|
Enquire | |
| 6514-02-W | FEEDTHROUGH | 1 | Weld | 5kV | 30 | Nickel | Yes |
0 in stock
$99.00
|
Enquire | |
| 21032-02-W | FEEDTHROUGH | 1 | Weld | 10kV | 30 | Nickel | Yes |
0 in stock
$113.52
|
Enquire | |
| 21134-02-KF | FEEDTHROUGH | 1 | NW16KF | 10kV | 30 | Nickel | Yes |
in stock
|
Enquire | |
| 21134-01-KF | FEEDTHROUGH | 1 | NW16KF | 10kV | 100 | Copper | Yes |
in stock
|
Enquire | |
| 21158-02-KF | FEEDTHROUGH | 2 | NW40KF | 10kV | 30 | Nickel | Yes |
in stock
|
Enquire | |
| 21158-01-KF | FEEDTHROUGH | 2 | NW40KF | 10kV | 100 | Copper | Yes |
in stock
|
Enquire | |
| 21159-02-KF | FEEDTHROUGH | 3 | NW40KF | 10kV | 30 | Nickel | Yes |
in stock
|
Enquire | |
| 21159-01-KF | FEEDTHROUGH | 3 | NW40KF | 10kV | 100 | Copper | Yes |
in stock
|
Enquire | |
| 21160-02-KF | FEEDTHROUGH | 4 | NW40KF | 10kV | 30 | Nickel | Yes |
in stock
|
Enquire | |
| 21160-01-KF | FEEDTHROUGH | 4 | NW40KF | 10kV | 100 | Copper | Yes |
in stock
|
Enquire | |
| 21131-02-CF | FEEDTHROUGH | 1 | NW16CF | 10kV | 30 | Nickel | Yes |
in stock
|
Enquire | |
| 21131-01-CF | FEEDTHROUGH | 1 | NW16CF | 10kV | 100 | Copper | Yes |
in stock
|
Enquire | |
| 21154-02-CF | FEEDTHROUGH | 2 | NW35CF | 10kV | 30 | Nickel | Yes |
in stock
|
Enquire | |
| 21154-01-CF | FEEDTHROUGH | 2 | NW35CF | 10kV | 100 | Copper | Yes |
in stock
|
Enquire | |
| 21155-02-CF | FEEDTHROUGH | 3 | NW35CF | 10kV | 30 | Nickel | Yes |
in stock
|
Enquire | |
| 21155-01-CF | FEEDTHROUGH | 3 | NW35CF | 10kV | 100 | Copper | Yes |
in stock
|
Enquire | |
| 21156-02-CF | FEEDTHROUGH | 4 | NW35CF | 10kV | 30 | Nickel | Yes |
in stock
|
Enquire | |
| 21156-01-CF | FEEDTHROUGH | 4 | NW35CF | 10kV | 100 | Copper | Yes |
in stock
|
Enquire |
