Ceramtec

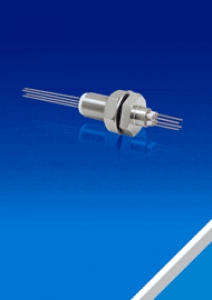

Baseplate to 15kV / to 185 Amps / 1 to 4 Pins
| 15700-04-A | FEEDTHROUGH | 1 | 1" Bolt | 12kV | 185 | Copper | Yes |
0 in stock
$570.24
|
Enquire | |
| 9388-01-A | FEEDTHROUGH | 2 | 1" Bolt | 15kV | 185 | Copper | Yes |
0 in stock
$993.96
|
Enquire | |
| 15710-02-A | FEEDTHROUGH | 4 | 1" Bolt | 2kV | 8.2 | Nickel | Yes |
2 in stock
|
Enquire | |
| 15710-04-A | FEEDTHROUGH | 4 | 1" Bolt | 2kV | 27 | Copper | No |
0 in stock
|
Enquire | |
| 15702-04-A | FEEDTHROUGH | 1 | 1" Bolt | 5kV | 55 | Copper | No |
0 in stock
$224.40
|
Enquire | |
| 15703-04-A | FEEDTHROUGH | 2 | 1" Bolt | 2kV | 55 | Copper | No |
0 in stock
$308.88
|
Enquire | |
| 15704-04-A | FEEDTHROUGH | 3 | 1" Bolt | 2kV | 55 | Copper | No |
0 in stock
|
Enquire | |
| 17413-01-A | PTFE Teflon Shield for use with part # 15700-04-A |
in stock
|
Enquire |
Specifications
Pin:
See table
Insulation:
Alumina ceramic
Magnetic materials:
See table
O-ring:
Viton®
Bolt:
304 Stainless steel
Voltage Rating:
See table
Current Rating:
See table
Temperature Range:
-25º C to 205º C
Pressure @ 20ºC:
200 PSIG (14 Bar)
Leak Rate:
<1x10-10 atm-cc/sec (He)
