Ceramtec

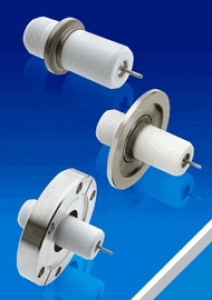

High Voltage Fluted: to 50kV / 10 Amps
| 21183-01-W | FEEDTHROUGH | 1 | Weld | 50kV | 10 | Yes |
0 in stock
$488.40
|
Enquire | |
| 21184-01-CF | FEEDTHROUGH | 1 | NW35CF | 50kV | 10 | Yes |
0 in stock
$578.16
|
Enquire | |
| 21185-01-KF | FEEDTHROUGH | 1 | NW50KF | 50kV | 10 | Yes |
0 in stock
$533.28
|
Enquire | |
| 21191-01-W | FEEDTHROUGH | 1 | Weld | 40kV | 10 | Yes |
0 in stock
$369.60
|
Enquire | |
| 21194-01-CF | FEEDTHROUGH | 1 | NW35CF | 40kV | 10 | Yes |
0 in stock
$459.36
|
Enquire | |
| 21117-01-KF | FEEDTHROUGH | 1 | NW40KF | 40kV | 10 | Yes |
in stock
|
Enquire |
Specifications
Housing:
Kovar
Pin:
Cold Rolled Steel (Nickel plated)
Insulation:
Alumina ceramic
Flange:
304 Stainless steel
Magnetic materials:
Yes
Voltage Rating:
40 kV DC
Current Rating:
10 Amps
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
400 PSIG (28 Bar), ISO KF 0 PSIG
Leak Rate:
<1x10-10 atm-cc/sec (He)
