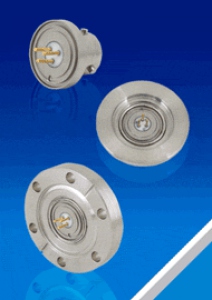

Circular: Single Ended MIL-C-26482
| 25522-01-W | 6 | Solder Cup | Weld | 1kV | 5 | No |
0 in stock
$278.52
|
Enquire | |
| 16130-02-W | 3 | Straight | Weld | 1kV | 5 | No |
0 in stock
$245.52
|
Enquire | |
| 16132-02-W | 10 | Straight | Weld | 1kV | 5 | No |
0 in stock
$269.28
|
Enquire | |
| 17148-01-CF | 3 | Solder Cup | NW35CF | 1kV | 5 | No |
0 in stock
$326.04
|
Enquire | |
| 17149-01-CF | 10 | Solder Cup | NW35CF | 1kV | 5 | No |
2 in stock
$396.00
|
||
| 17160-01-KF | 3 | Straight | NW25KF | 1kV | 5 | No |
0 in stock
$314.16
|
Enquire | |
| 17161-01-KF | 6 | Straight | NW40KF | 1kV | 5 | No |
0 in stock
$335.28
|
Enquire | |
| 17162-01-KF | 10 | Straight | NW40KF | 1kV | 5 | No |
0 in stock
$353.76
|
Enquire | |
| 17163-01-KF | 19 | Straight | NW40KF | 1kV | 5 | No |
0 in stock
$385.44
|
Enquire | |
| 17171-01-KF | 3 | Solder Cup | NW25KF | 1kV | 5 | No |
0 in stock
$326.04
|
Enquire | |
| 17172-01-KF | 6 | Solder Cup | NW40KF | 1kV | 5 | No |
0 in stock
$341.88
|
Enquire | |
| 17173-01-KF | 10 | Solder Cup | NW40KF | 1kV | 5 | No |
0 in stock
$366.96
|
Enquire | |
| 17174-01-KF | 19 | Solder Cup | NW40KF | 1kV | 5 | No |
0 in stock
$425.04
|
Enquire | |
| 17343-01-CF | 6 | Solder Cup | NW35CF | 1kV | 5 | No |
0 in stock
$369.60
|
Enquire | |
| 17787-01-CF | 19 | Solder Cup | NW35CF | 1kV | 5 | No |
6 in stock
$425.04
|
||
| 18894-01-CF | 3 | Straight | NW35CF | 1kV | 5 | No |
0 in stock
$314.16
|
Enquire | |
| 18895-01-CF | 6 | Straight | NW35CF | 1kV | 5 | No |
0 in stock
$335.28
|
Enquire | |
| 18896-01-CF | 10 | Straight | NW35CF | 1kV | 5 | No |
0 in stock
$353.76
|
Enquire | |
| 18897-01-CF | 19 | Straight | NW35CF | 1kV | 5 | No |
0 in stock
$369.60
|
Enquire | |
| 24003-01-KF | 32 | Straight | NW40KF | 1kV | 5 | No |
0 in stock
|
Enquire | |
| 24009-01-KF | 32 | Solder Cup | NW40KF | 1kV | 5 | No |
0 in stock
|
Enquire | |
| 24010-01-KF | 41 | Solder Cup | NW50KF | 1kV | 5 | No |
0 in stock
|
Enquire | |
| 25306-01-W | 19 | Straight | Weld | 1kV | 5 | No |
8 in stock
$269.28
|
||
| 16131-02-W | 6 | Straight | Weld | 1kV | 5 | No |
in stock
|
Enquire | |
| 24001-01-W | 32 | Straight | Weld | 1kV | 5 | No |
in stock
|
Enquire | |
| 24002-01-W | 41 | Straight | Weld | 1kV | 5 | No |
in stock
|
Enquire | |
| 24004-01-KF | 41 | Straight | NW50KF | 1kV | 5 | No |
in stock
|
Enquire | |
| 24005-01-CF | 32 | Straight | NW35CF | 1kV | 5 | No |
0 in stock
|
Enquire | |
| 24006-01-CF | 41 | Straight | NW50CF | 1kV | 5 | No |
0 in stock
|
Enquire | |
| 16010-02-W | 3 | Solder Cup | Weld | 1kV | 5 | No |
in stock
|
Enquire | |
| 16012-02-W | 10 | Solder Cup | Weld | 1kV | 5 | No |
in stock
|
Enquire | |
| 25309-01-W | 19 | Solder Cup | Weld | 1kV | 5 | No |
in stock
|
Enquire | |
| 24007-01-W | 32 | Solder Cup | Weld | 1kV | 5 | No |
in stock
|
Enquire | |
| 24008-01-W | 41 | Solder Cup | Weld | 1kV | 5 | No |
in stock
|
Enquire | |
| 24011-01-CF | 32 | Solder Cup | NW35CF | 1kV | 5 | No |
in stock
|
Enquire | |
| 24012-01-CF | 41 | Solder Cup | NW50CF | 1kV | 5 | No |
in stock
|
Enquire |
Specifications
Shell:
304 Stainless steel
Pins:
300 Series Stainless steel (Gold Plated)
Insulation:
Glass-ceramic
Magnetic materials:
No
Voltage Rating:
1kV DC
Current Rating:
5 Amps per pin
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
3 Pin: 550 PSIG (38 Bar)
6 Pin: 500 PSIG (34 Bar)
19 Pin: 400 PSIG (28 Bar)
32 Pin: 375 PSIG (26 Bar)
41 Pin: 350 PSIG (24 Bar)
Leak Rate:
<1x10-10 atm-cc/sec (He)
