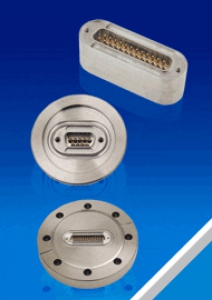

Sub D Type MIL-C-24308
| 16800-01-W | MULTIPIN CONNECTOR | 9 | Weld | 500V | 5 | No |
0 in stock
$277.20
|
Enquire | |
| 16801-01-W | MULTIPIN CONNECTOR | 15 | Weld | 500V | 5 | No |
0 in stock
$297.00
|
Enquire | |
| 16802-01-W | MULTIPIN CONNECTOR | 25 | Weld | 500V | 5 | No |
0 in stock
$322.08
|
Enquire | |
| 16804-01-W | MULTIPIN CONNECTOR | 50 | Weld | 500V | 5 | No |
15 in stock
$409.20
|
||
| 16810-01-A | MULTIPIN CONNECTOR (PEEK) | 9 | Vacuum Side Plug - Female | 500V | 5 | No |
0 in stock
$228.36
|
Enquire | |
| 16811-01-A | MULTIPIN CONNECTOR (PEEK) | 15 | Vacuum Side Plug - Female | 500V | 5 | No |
0 in stock
$271.92
|
Enquire | |
| 16812-01-A | MULTIPIN CONNECTOR (PEEK) | 25 | Vacuum Side Plug - Female | 500V | 5 | No |
0 in stock
$327.36
|
Enquire | |
| 16814-01-A | MULTIPIN CONNECTOR (PEEK) | 50 | Vacuum Side Plug - Female | 500V | 5 | No |
0 in stock
$497.64
|
Enquire | |
| 18076-01-A | MULTIPIN CONNECTOR | 9 | Air Side Plug | 500V | 5 | Yes |
0 in stock
$34.32
|
Enquire | |
| 18076-02-A | MULTIPIN CONNECTOR | 15 | Air Side Plug | 500V | 5 | Yes |
0 in stock
$36.96
|
Enquire | |
| 18076-03-A | MULTIPIN CONNECTOR | 25 | Air Side Plug | 500V | 5 | Yes |
0 in stock
$39.60
|
Enquire | |
| 18076-04-A | MULTIPIN CONNECTOR | 50 | Air Side Plug | 500V | 5 | Yes |
0 in stock
$48.84
|
Enquire | |
| 18605-01-KF | MULTIPIN CONNECTOR | 9 | NW40KF | 500V | 5 | No |
0 in stock
$339.24
|
Enquire | |
| 18606-01-KF | MULTIPIN CONNECTOR | 15 | NW50KF | 500V | 5 | No |
0 in stock
$386.76
|
Enquire | |
| 18607-01-CF | MULTIPIN CONNECTOR | 9 | NW35CF | 500V | 5 | No |
0 in stock
$352.44
|
Enquire | |
| 18608-01-CF | MULTIPIN CONNECTOR | 15 | NW50CF | 500V | 5 | No |
0 in stock
$405.24
|
Enquire | |
| 18609-01-CF | MULTIPIN CONNECTOR | 25 | NW63CF | 500V | 5 | No |
0 in stock
$463.32
|
Enquire | |
| 18610-01-CF | MULTIPIN CONNECTOR | 50 | NW100CF | 500V | 5 | No |
0 in stock
$685.08
|
Enquire | |
| 19827-01-A | MULTIPIN CONNECTOR (PEEK) | 9 | Vacuum Side Plug - Male | 500V | 5 | No |
0 in stock
$228.36
|
Enquire | |
| 20306-01-CLF | MULTIPIN CONNECTOR | 25 | NW63LF | 500V | 5 | No |
0 in stock
$463.32
|
Enquire | |
| 21108-01-CF | MULTIPIN CONNECTOR | 15 | NW63CF | 500V | 5 | No |
0 in stock
$417.12
|
Enquire | |
| 21109-01-CF | MULTIPIN CONNECTOR | 50 (2x25) | NW63CF | 500V | 5 | No |
0 in stock
$881.76
|
Enquire | |
| 21641-01-CF | MULTIPIN CONNECTOR | 100 (2x50) | NW100CF | 500V | 5 | No |
0 in stock
$1,510.08
|
Enquire | |
| 20307-01-CLF | MULTIPIN CONNECTOR | 50 | NW100LF | 500V | 5 | No |
in stock
|
Enquire | |
| 19828-01-A | MULTIPIN CONNECTOR (PEEK) | 15 | Vacuum Side Plug - Male | 500V | 5 | No |
in stock
|
Enquire | |
| 17411-01-A | MULTIPIN CONNECTOR (PEEK) | 25 | Vacuum Side Plug - Male | 500V | 5 | No |
in stock
|
Enquire | |
| 19829-01-A | MULTIPIN CONNECTOR (PEEK) | 50 | Vacuum Side Plug - Male | 500V | 5 | No |
in stock
|
Enquire |
Specifications
Shell:
304 Stainless steel
Pins:
300 Series Stainless steel (Gold Plated)
Insulation:
Glass-ceramic
Magnetic materials:
No
Voltage Rating:
500 V DC
Current Rating:
5 Amps per pin
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
9 Pin: 1350 PSIG (93.1 Bar)
15 Pin: 1250 PSIG (86.2 Bar)
25 Pin: 1200 PSIG (82.7 Bar)
50 Pin: 900 PSIG (62.1 Bar)
Leak Rate:
<1x10-10 atm-cc/sec (He)
